Solder Wave Pallets

Kristeel is the leading manufacturer of Solder Wave Pallets in India. Specialized in the manufacturing of customized Soldering wave pallets, Reflow pallets, Routing fixtures and jigs, Thermal paste fixtures, etc.



Our production and design department are trained overseas to stay updated with the latest technology and serve our clients with utmost quality. We follow stringent statistical Quality Control Norms to serve the best-in-class quality to our clients.

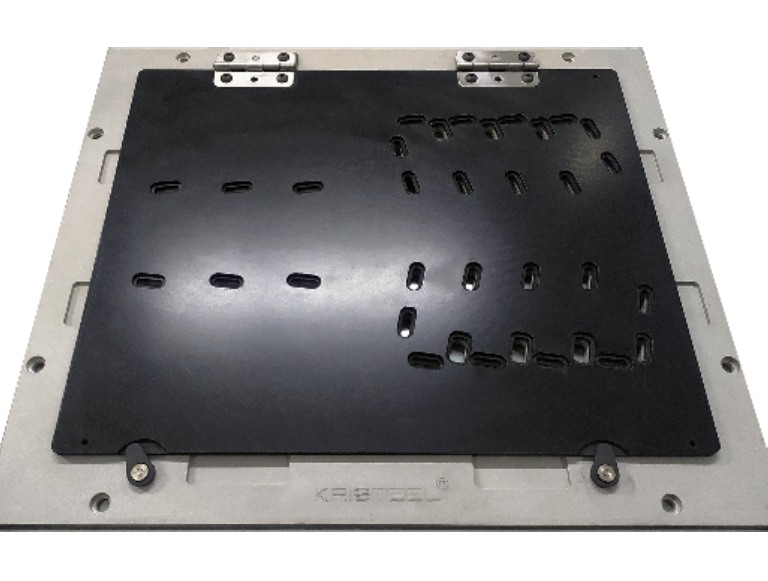

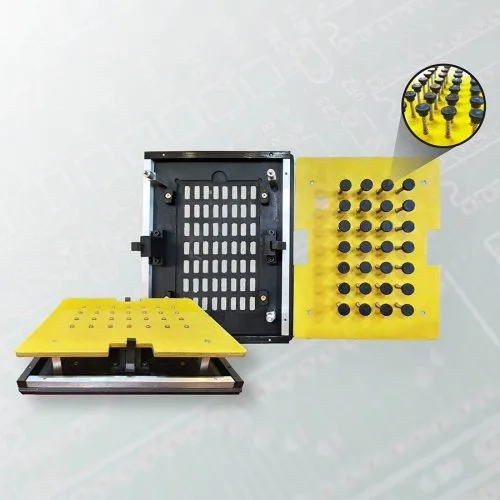

Solder Wave Pallet with Top Catch

Product Gallery

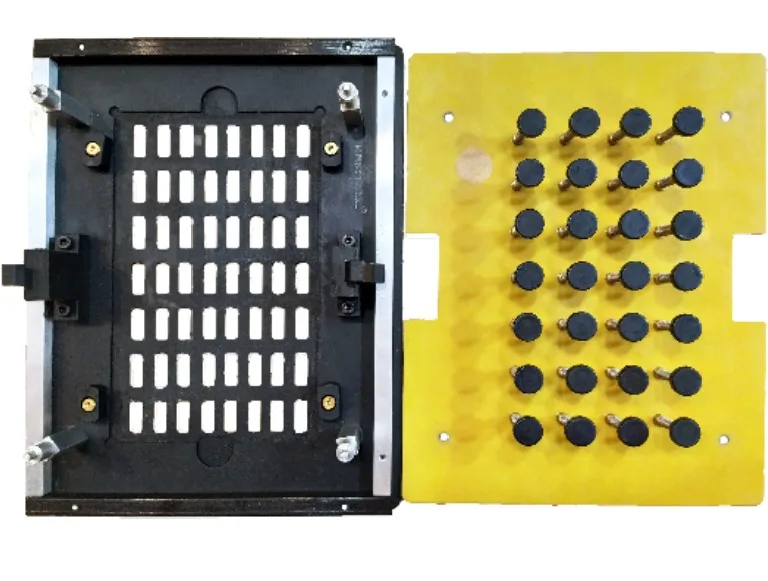

Solder Wave Pallet

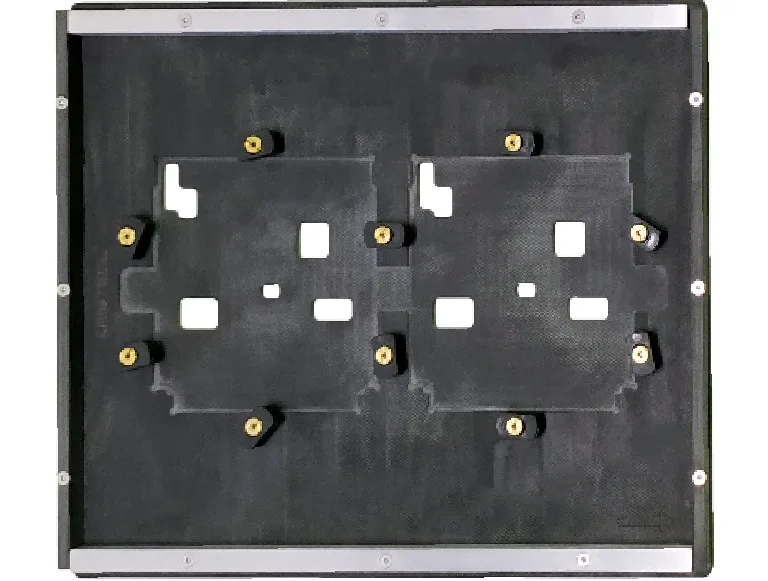

Selective Wave Pallet

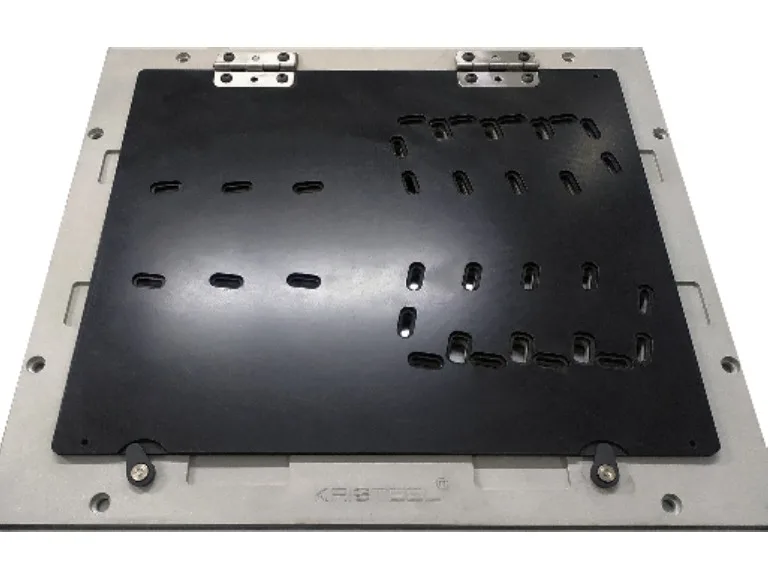

Routing Fixture

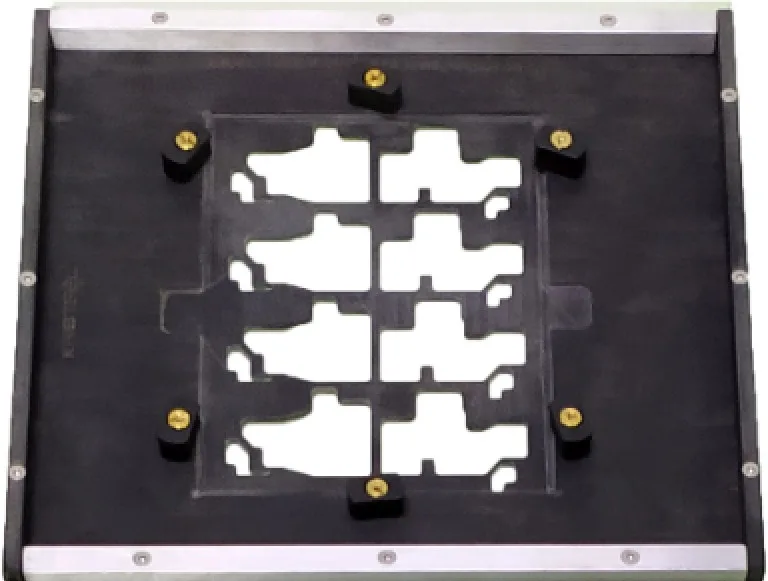

Selective Wave Pallet

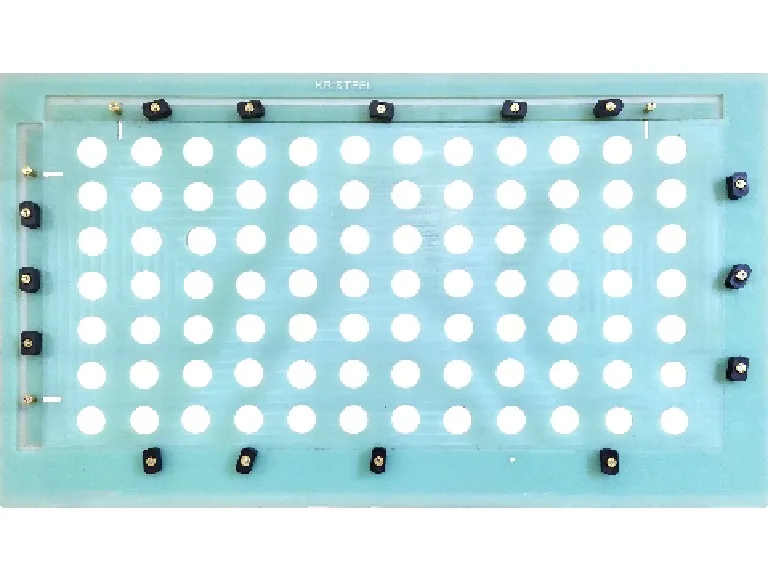

PCB Support Pallet
Thermal Paste Fixture

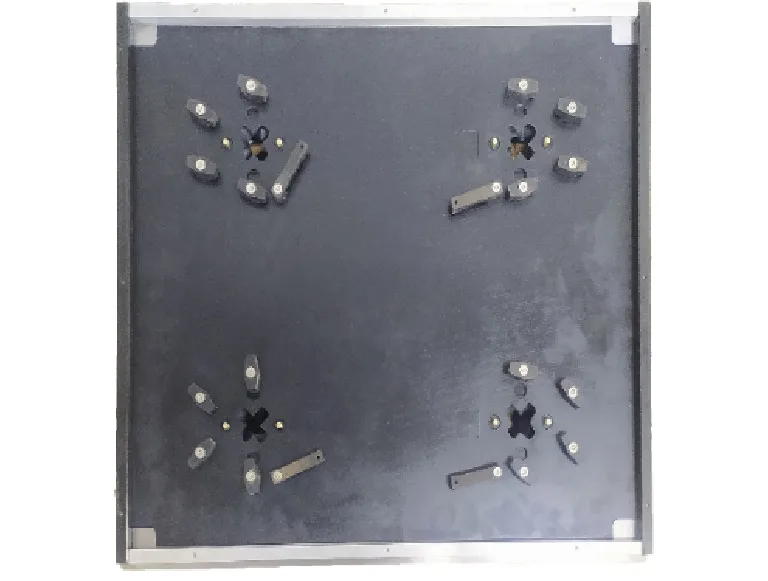

Selective Wave Pallet
Selective Wave Pallet

Why Choose Us?

Whether you’re a contract manufacturer or an OEM, we can fulfill your requirements. Customer experience, skill, and a genuine commitment to serve you, that’s the kind of commitment you’ll get from Kristeel. The quality and service that made us partner with technology legends in the early days will make us a valuable asset to your PCB Assembly line.

Our capacity to produce Selective wave solder pallets, Universal wave solder pallets, Wave solder pallets with top catch, etc. is fully In-house & fully tailor-made as per customer requirements.

solder-metal-blades
Solder Metal Blade Image

Wave Soldering Pallet

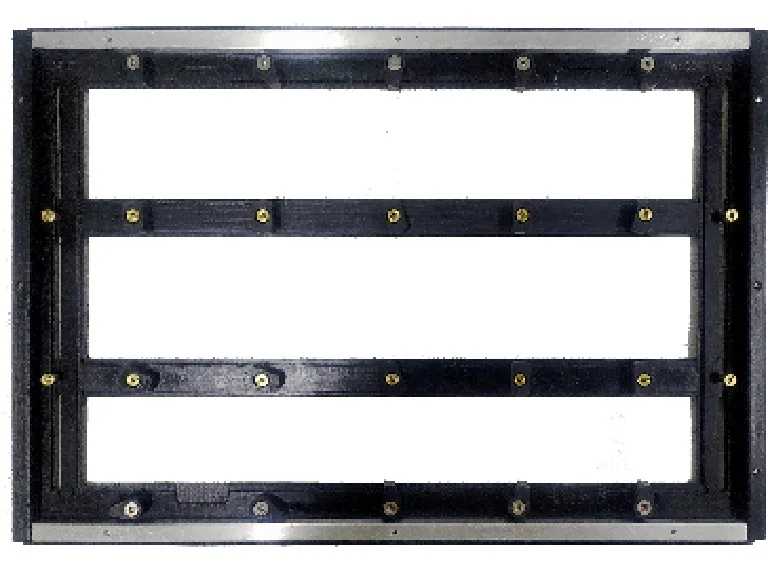

  • Selective Wave Soldering Pallet are the quickest and most cost-effective technique to solder through-hole components poster flow. Pallets grant wave solder processing through-open components while concealing soldering side SMT components & critical board features from molten solder.
  • Universal Wave Pallet is designed to support a PCB that would otherwise be unable to process through wave soldering center bars easily adjust for PCB width.

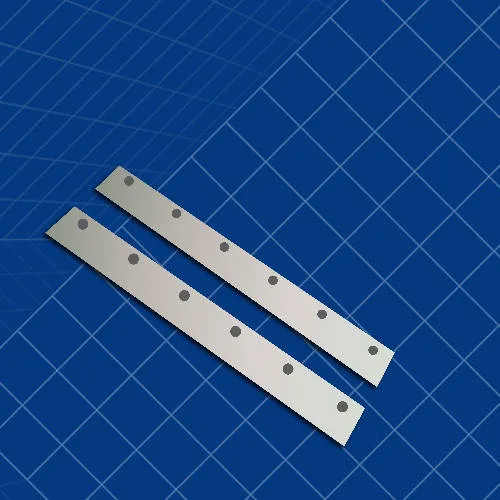

  • Metal Squeegee Blades are proven to provide improved print definition and more uniform print volume across the entire image area and consistency by offering a rigid, low–friction, steel edge for cleaner prints. Manufactured metal squeegee holder fits with any blades of DEK, MPM, Fuji, SMTech, and Panasonic.
  • Wave Pallet with Top Catch spring-loaded hold down and coil locator makes for perfect PCB’s every time. Simple & fast error-proof orientation.

Wave Soldering Pallet

  • Flexible PCB Support & Reflow Pallets  Kristeel specializes in manufacturing PCB support pallets. We can design and manufacture as per request to ease your printing & assembly process for all types of PCBs. Available in various materials & sizes.

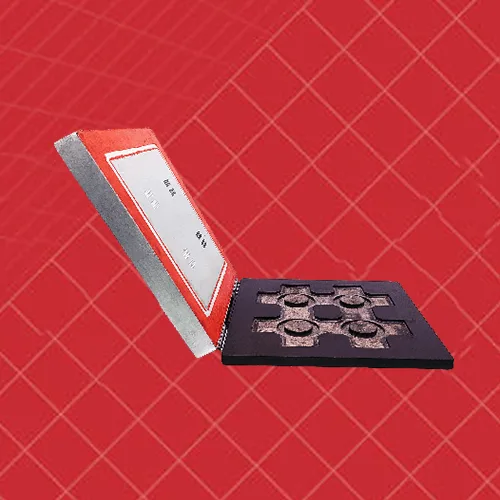

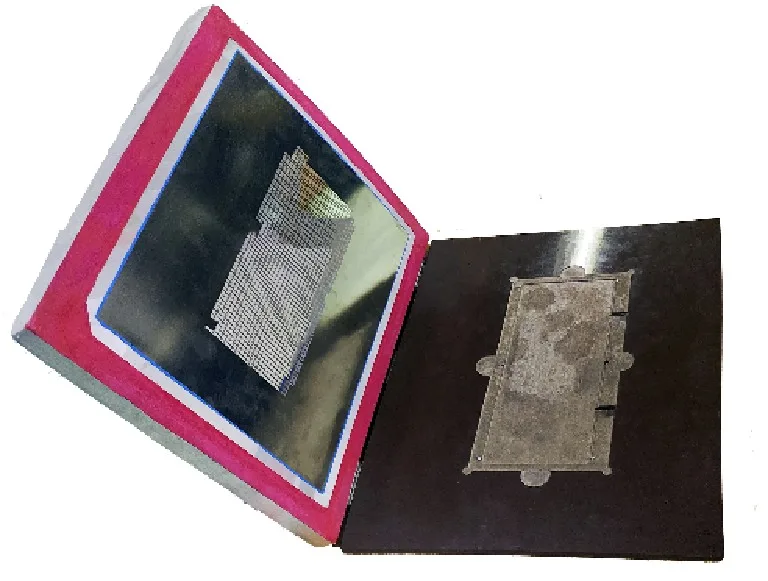

  • Thermal Paste Fixture standard & customized Thermal Paste Stencil & Fixture. Stencil + Fixture assembly eases your work to dispense thermal paste which is very high heat conductive and it effectively takes out the heat produced in LED.

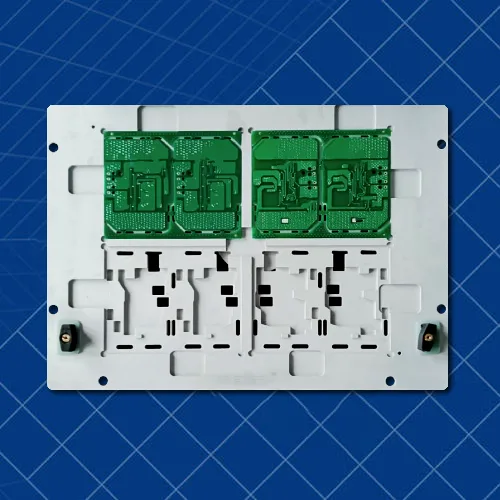

  • Routing Jig fixtures  Routing fixtures easily Depanel fixtures and are convenient to use. Kristeel routing fixtures are simple and inexpensive. Our designs allow you to easily de panel most boards without endangering delicate solder joints. Our designs are so easy that you can easily place your paneled PCB into the fixture, lock it and put it into the machine.

Router Fixture
Thermal Paste Fixture

INDUSTRY APPLICATIONS

Manufacturing

Manufacturing

Batteries

Batteries

Assembly

Assembly

Electronics

Electronics

Defence

Defence

Solar

Solar

Aeronautics

Aeronautics

Energy

Energy

Telecommunication

Telecommunication

EMS

EMS

We can work with your existing router base configuration or design one to suit your preferences.
